SCOM 2012 Maintenance Mode Script – Computer maintenance mode depending on SCCM 2012 collection membership

Maintenance mode is always something you are facing during System Center setups. Let’s say you have a SCCM administrator who want’s to deploy it’s Windows updates on a certain day e.g. Tuesday @ 08.00 p.m. o’clock, and he also decides to reboot each server forcefully after successful deployment. Because we (SCOM administrators) have to find a reliable way to put server objects in maintenance mode depending on the SCCM collection which will trigger the reboot of the servers.

I decided to write a script which will be triggered by a basic task on a management server and put all server in the concerning SCCM collection in maintenance mode.

I use a WMI connection to the SCCM server to retrieve the server objects in the collection. Maybe there is a better way to do it, let me know. Because of that I created a service account which will execute the scheduled basic task and therefore the script.

The triggering service account needs the following permission in SCCM to successfully connect to the SCCM collection WMI namespace.

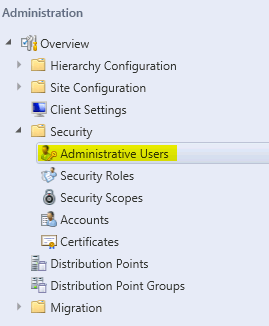

In SCCM 2012 console go to “Administrative Users”…

sccm add user

…and assign the “Read-only Analyst” permission to the service account

SCCM Role

In addition to that I assigned “Operations Manager Administrators” permission to the same service account.

Now you should be able to run the script successfully.

Script:

#Define the SCCM and SCOM server

$SCCMServer=”SCCM.domain.com”

$SCOMServer=”SCOM.domain.com”

#Define the SCCM collection

$CollectionName=’UPD – Server Patching Tuesday’

#Define the SCCM site name e.g. site_02

$SCCMWMINameSpace=”root\sms\site_s02″

#Define how many minutes the maintenance mode should run e.g.10 minutes

$Time = ((Get-Date).AddMinutes(10))

#Here you just deliver the comment and reason for the maintenance mode

$Comment = “Software Updates”

$Reason = “SecurityIssue”

#Valid inputs for $Reason: #PlannedOther,UnplannedOther,PlannedHardwareMaintenance,UnplannedHardwareMaintenance #PlannedHardwareInstallation,UnplannedHardwareInstallation,PlannedOperatingSystemReconfiguration #UnplannedOperatingSystemReconfiguration,PlannedApplicationMaintenance,ApplicationInstallation #ApplicationUnresponsive,ApplicationUnstable,SecurityIssue,LossOfNetworkConnectivity

#Import the Operations Manager module

Import-Module OperationsManager

#Get the objects from the SCCM collection using WMI

$Collection = Get-WmiObject -Namespace $SCCMWMINameSpace -ComputerName $SCCMServer -Query “Select * from SMS_Collection where name=’$CollectionName'”

$Collection.Get()

#Loop through each object in the collection

ForEach ( $CompInCol in $Collection.CollectionRules ) {

#Here we get the computer name out of the collection using the RuleName property

$Object= $CompInCol.RuleName

#Get instance of the computer object in SCOM

$ComputerClass = Get-SCOMClass -name:Microsoft.Windows.Computer

$ComputerInstance = Get-ScomClassinstance -Class:$ComputerClass | where {$_.Displayname -like “*$Object*”}

#Check if there is a valid instance in SCOM, it could be that the computer does exist in SCCM but is not monitored with SCOM

If ($ComputerInstance.Name -ne $null) {

#For the SCOM computer instance get the appropriate health service watcher

$HealthServiceClass = Get-SCOMClass -name:Microsoft.SystemCenter.HealthService

$HealthServiceWatcherClass = Get-SCOMClass -name:Microsoft.SystemCenter.HealthServiceWatcher

$HealthServiceWatcher = Get-SCOMClassInstance -Class:$HealthServiceWatcherClass | where{$_.Displayname -like “*$Object*”}

#Retrieve the appropriate health service

$Agent = Get-SCOMAgent | where {$_.Displayname -like “*$Object*”}

$HealthService = $Agent.HostedHealthService

#Start each maintenance mode for the health service watcher, health service and the computer instance

Start-SCOMMaintenanceMode -Instance $HealthServiceWatcher -EndTime $Time -Reason $Reason -Comment $comment

Start-SCOMMaintenanceMode -Instance $HealthService -EndTime $Time -Reason $Reason -Comment $comment

Start-SCOMMaintenanceMode -Instance $ComputerInstance -EndTime $Time -Reason $Reason -Comment $comment

}

}

I like Daumen hoch

9 Comments

  1. Hi,

    do you have a script for putting servers (windows and linux) in maintenance mode by there servername and from users withour rights on scom -> a script to put servers remote to maintenance mode from every workstation in the company? Hope you can help.

    Thanks and greetings

  2. Hi Scomfaq,
    This looks like it will be really useful when we integrate our SCCM 2012 infrastructure with patching. We are currently using WSUS and as such I am having some issues amending the syntax from the previous version. My powershell skills are advancing although not the degree that I’d like. I like how you put HealthService, HealthServiceWatcher and ComputerNode all into MM. Are you able to create a command, a little like those described here, http://operatingquadrant.com/2009/08/15/scom-automatically-starting-maintenance-mode-when-servers-are-rebooted-for-patching/ to put all these objects into MM for a configurable period after a 1074 event is fired on the client?
    Thanks in advance,
    Andrew

  3. Stefan,

    Nice post. May use some of this logic to exclude systems from SCCM deployments (patching, apps, etc.) if they are in MM in SCOM to improve success % when targeting servers.

    Doreen,

    Write a webservice as a proxy between SCOM and the user to handle the request without the need of elevated rights. PowerShell can interact with webservices easily as a front-end to interact with the webservice to put systems in MM.

    -Stephen (‘Merica)
