SCOM 2012 – Find Workflow From Windows Event

When you are deploying SCOM agents to many servers from a test or prod environment, it could happen that a server administrator steps up to you and tells you that he has many strange event log entries which are probably from SCOM. Like in this example here…

clip_image001

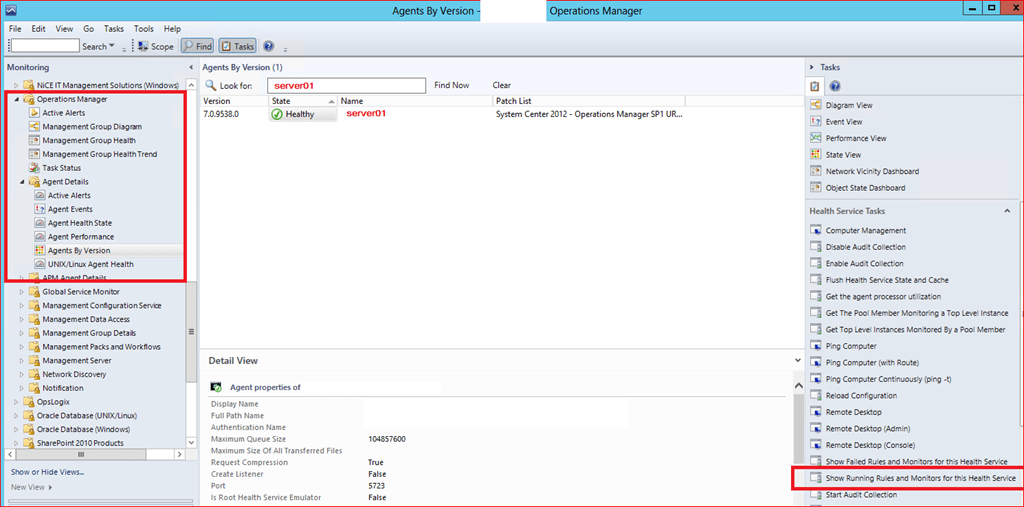

As we can easily identify there must be a a rule or monitor from a NiCE MP and in addition we got the information from the administrator that it is happen on server01. With this knowledge you can start your research. Go to Monitoring / Operations Manager / Agent Details / Agents By Version …


There is a task which is not very known by many people called Show Running Rules and Monitors for this Health Service…

2

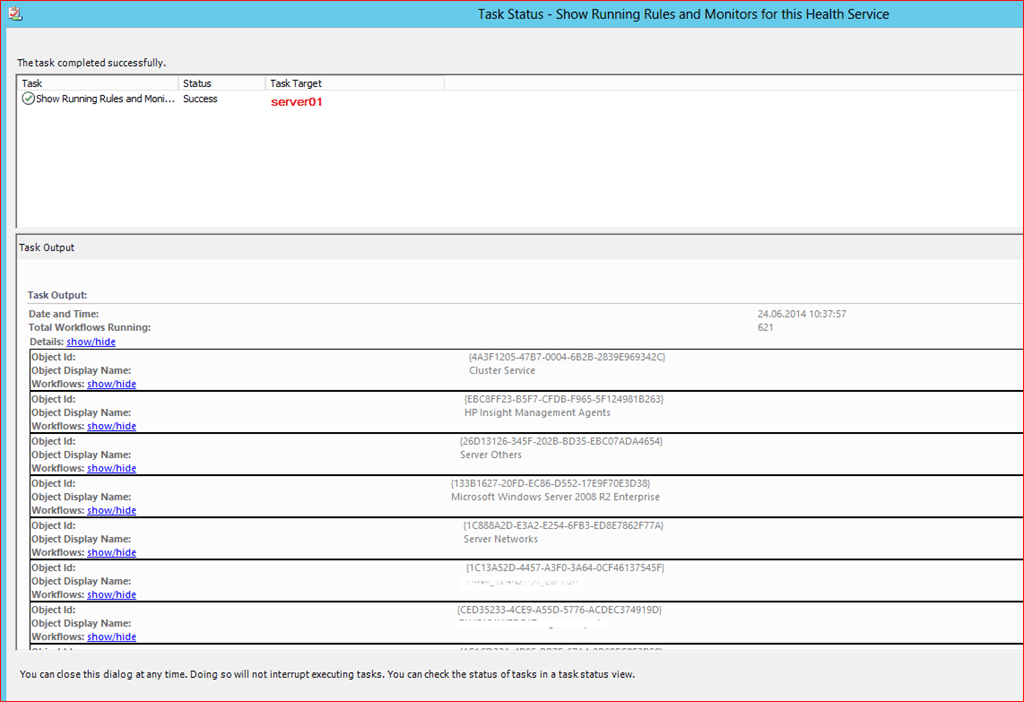

After running this task you get an output like this…

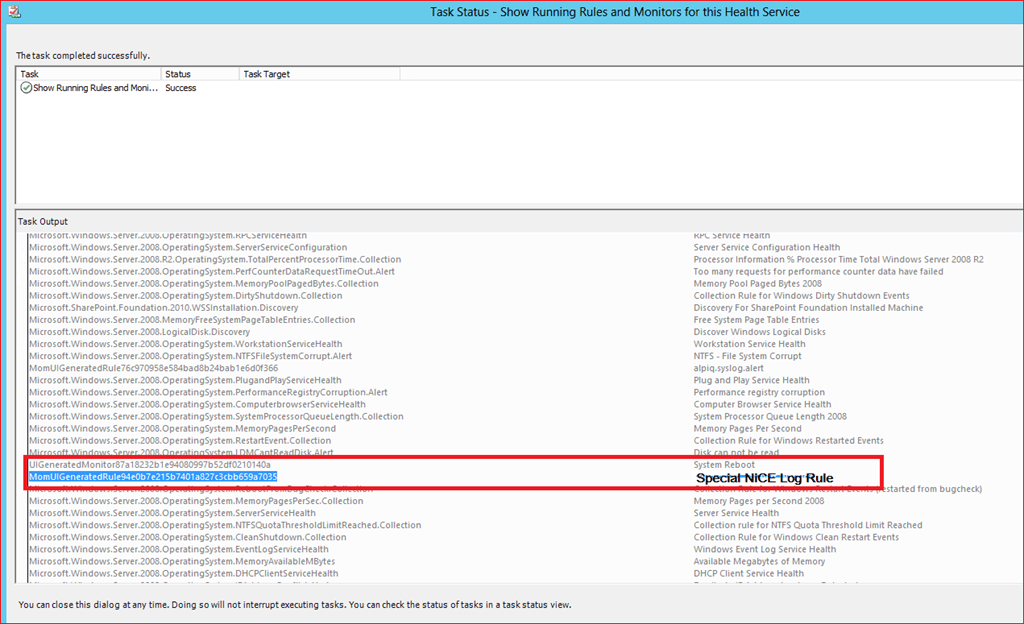

If you expand this you will find many entries, in my case I was pretty sure it was a manually / GUI created rule / monitor therefore I was checking the sections for these entries like *UIGeneratedRule or *UIGeneratedMonitor

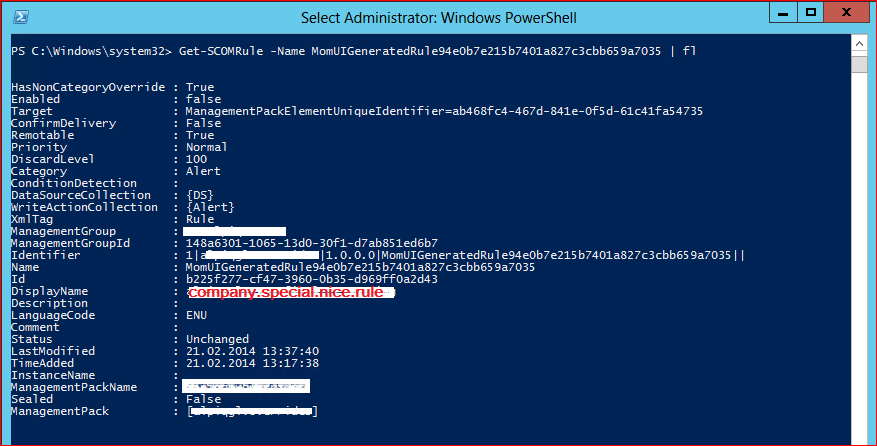

This looks promising so let’s figure out what the exact rule name is…

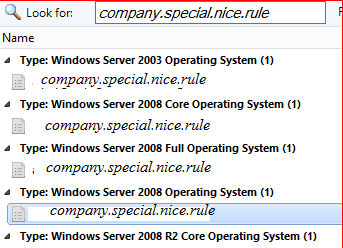

Then lets search for the company.special.nice.rule in Authoring / Management Pack Objects / Rules

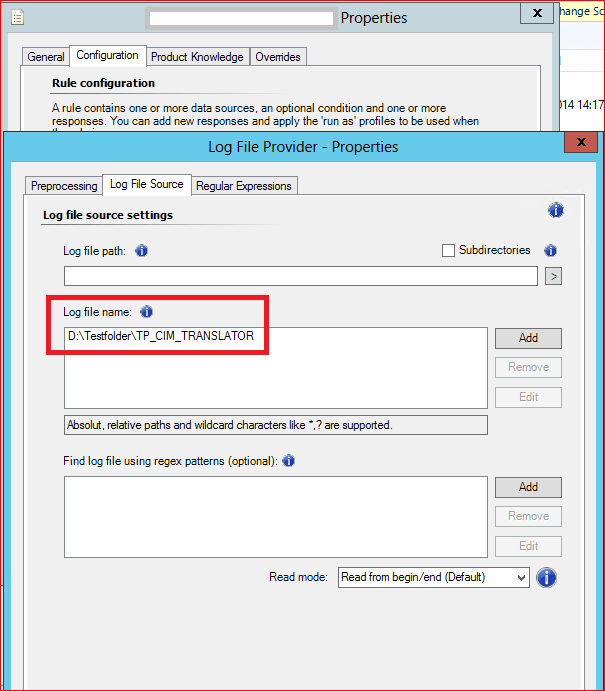

If we check the properties of the rule we find some references to the Windows event entry description…


Well this is not groundbreaking stuff but I think it helps identify workflows and solve issues related to workflows.
