SCOM 2012 – HP Hardware Monitoring on VMware ESXi Servers

Recently in September HP has its latest management pack suite released for System Center Operations Manager called Insight Control for Microsoft System Center 7.1.1 actually it also contains the HP SCCM Integration Kit.  In my case I wanted to monitor HP ESXi hardware and needed the proper HP management packs and software. I always found it some kind of troublesome to find the right stuff on HP’s website and it is not always clear what is being supported and what not. That’s why I would like to share my outcome.

Introduction

If you want to monitor HP servers (e.g. ProLiant G1 up to G7) and run Windows Server operating system on top of it you need to deploy the HP Insight Control Agent (SNMP and/or WBEM) and also the SCOM agent. After this happens you are able to import the HP management packs for ProLiant servers and everything should work fine.

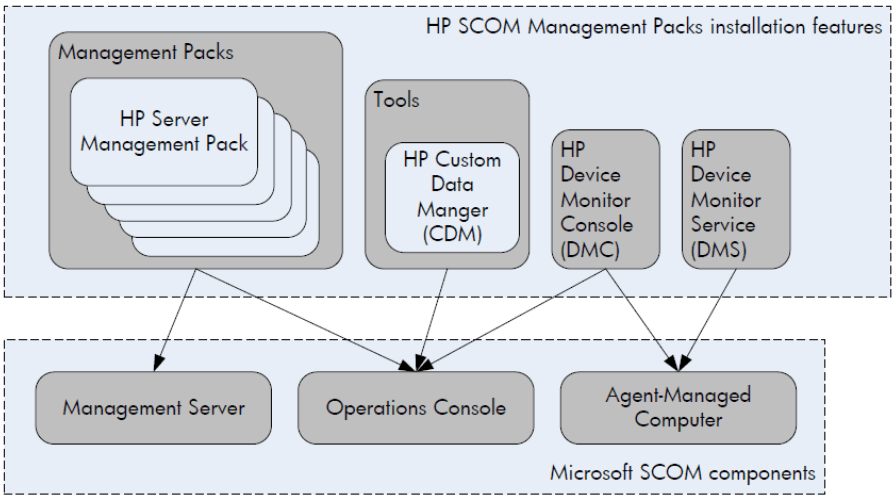

If you want to monitor VMware (ESX), Blade Servers or the new HP G8 (Generation 8) hardware you need to install the HP Device Monitor Console (DMC) / HP Device Monitor Service (DMS) which is basically a piece of software that manages the connection to the respective HP technology. I recommend installing this software on a dedicated server and not a management server because I try to keep management servers as “clean” as possible and I choose to install 3rd party software on a dedicated server. But this is my personal habit. Next deploy a SCOM agent to this dedicated server and import the management packs into SCOM for either VMware, Blade Server or the Agentless management pack for the new ProLiant G8 servers.


Problem

A customer had the requirement to monitor ESXi 5 hardware on ProLiant DL380 G6 servers. Well after some researching and studying the HP guides I found the following supported scenarios.

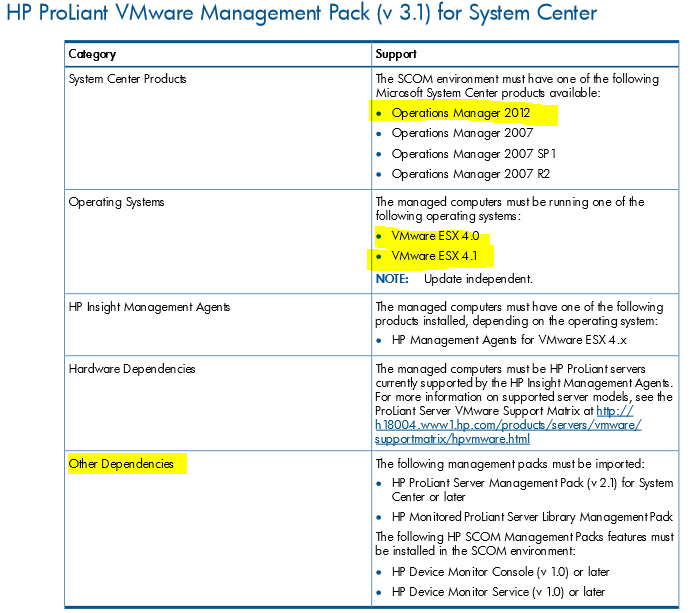

In the SCOM Management Packs User Guide you see that only VMWare ESX 4.0 and 4.1 are supported using the VMware Management Pack…

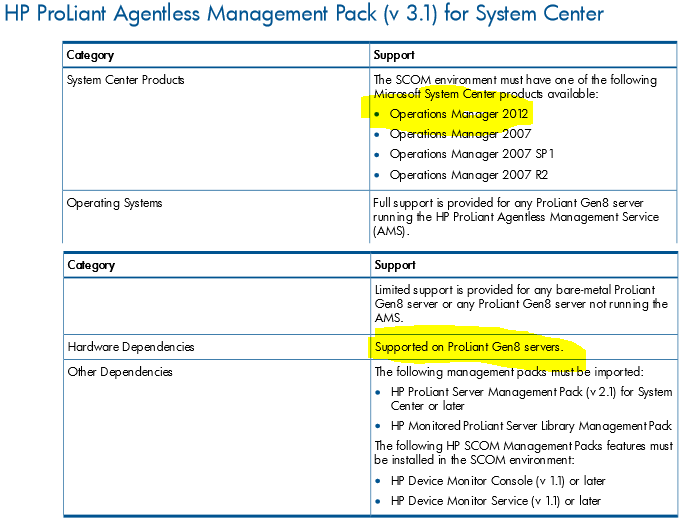

If you have a ProLiant G8 server as mentioned above you could use the HP ProLiant Agentless Management Pack to monitor the HP server hardware…


BUT what if you have a ESXi 5 running on older ProLiant hardware like DL380 G6 or even older?

Outcome

Well bad news – according to HP it is not possible to monitor the HP hardware like ProLiant DL 380 G7 and older where ESXi 5 is running on top.

Here the statement from HP Switzerland…

No there is no plan to support pre-Gen8 ESXi servers in ICSC*. ESX uses SNMP, so it was very similar to what we did to support Linux. However, ESXi does not use SNMP, but rather CIM, which is a whole different thing. Since we could get ESXi support “for free” with Gen 8 agentless, that was the route we chose.

*ICSC=Insight Control for Microsoft System Center

To get a better overview, how to monitor HP ProLiant hardware on different operating systems this table should help…

  HP ProLiant G1-G7 HP ProLiant G8
Windows OS Insight Management Agent + SCOM Agent + HP ProLiant MP  Insight Management Agent + SCOM Agent + HP ProLiant MP
OR
HP DMC + HP Agentless MP
ESX 4.0/4.1 HP DMC + HP VMWare MP HP DMC + HP Agentless MP
ESXi 5 NOT Supported HP DMC + HP Agentless MP

The entire documentation about HP’s Insight Control for Microsoft System Center you can find here.

Nevertheless if you need to monitor ESX or ESXi I highly recommend the management pack from Veeam. Some time ago I wrote a post about it. You can find the post here.

I hope this post saves you some time finding the right information!

22 Comments

  1. Very good post, it pointed me in the right direction. Now I’ve been looking how to add Agentless Server to the DMC but no luck, I’ve enabled SNMP on ESXi 5.1 (running on a Gen8 ProLiant server), but it just will not add the server. Am I missing something? I’ve spent already a fair amount of time looking for an answer, but HP guides are not up-to-date, and I could not find anything on Google. Any pointers on how to add an Agentless Server to DMC?

  2. Thanks for the great article. i guess every one is in agreement with the fact that HP’s documentation is so confusing. I was able to follow this article and it was of great help in determining what I needed. We have DL360 Gen8 servers running VMware 5.1 Esxi. I noticed that it does not detect the operating system with the agentless servers. Mine showed up as Operating System unknown – Build-1117900

  3. Really great article with many useful info in one place. Reading the documentation of HP ProLiant Agentless Management Pack (v 3.1) for Microsoft System Center User at a link posted in this article (http://h20564.www2.hp.com/portal/site/hpsc/public/kb/docDisplay/?docId=emr_na-c03477091) I’ve came accross the following sentence:
    “For example, servers running VMware ESXi 4.x or 5.0 are not supported for in-band management by the HP ProLiant VMware Management Pack, but they are supported for out-of-band management using the HP ProLiant Agentless Management Pack.”
    So is there a possibility to monitor HP ProLiant DL380 G7 running ESXi 5 with this new version of agentless MP? (or I’m missing something 🙂

    Thanks for reply…

    • Hi Dawid

      The problem is, that the out-of-band management using the HP ProLiant Agentless management pack is only supported by HP ProLiant DL 380 G8 and later. To be more precise, G8 Servers have on their ILO a built in SNMP which you are abe to connect using the HP Device Management Console (DMC). This provides an Interface for the Agentless MP. G7 Server do not have this ILO / SNMP capability.

      Cheers,

      Stefan

  4. Hello Sir,

    Need your assistance on Hardware monitoring.
    We are trying to monitor the HP Proliant hardware for G8 Machines.
    Followed the below steps:

    Installed and imported management pack on SCOM RMS Test Server
    Installed DMC on a standalone server where SCOM agent was installed (abc machine)
    Installed DMS service a separate machine where the SCOM agent was installed.(efg machine)
    Added EFG machine name on DMC Console.
    Enabled SNMP services on all the three servers (RMS, ABC and EFG)

    Servers are not discovered in SCOM Console, Could you please assist me do I am missing any steps?

    Could you please let me know what details do we need to given in ADD ONBOARD ADMINISTRATOR.
    Confused at the Credentials part. User name and password.
    shall we give user name and password of the SCOM RMS Machine or any other credentials.

    Please help me and looking forward for your reply.

    Regards,
    Sanjeev Kumar N

  5. Hi Stefan
    I was able to follow this article and it was of ultimate help in determining what I needed. We have DL360 Gen8 servers running VMware ESXi 5.1. DMC and HP agentless are working fine through iLO. DL380 G7 and earlier are also working fine with HP insight agent+SCOM agent and im getting all on SCOM2012.
    But in DMC action area there is an option “add Linux or Vmware ESX server. Can you help me how to configure VMware esxi 5.1 running on HP G8 hardware and add in side DMC console.
    regards,
    Rizwan
