SCOM 2012 SP1 – “Unable to Proceed” Troubleshooting Upgrade Error

As I already have learned in many ways – Don’t assume anything, proof it! Another rule is – What you see is not always what you get. With those two quotes in mind we have to start troubleshooting in IT.

Today I spent quite some time troubleshooting an SCOM SP1 upgrade installation. I wanted to upgrade a SCOM 2012 management group as I did few times for other customers – without any pain. This time after starting the setup I faced this dialog…

1

I spent a lot of time figuring out what this is all about.

First I made sure the database server for the data warehouse is up and running. Because there were multiple instances running I checked all the permissions for the database engine and reporting services and so on. Everything was wonderful. Next, I checked the DNS resolution for the SQL server instance and tuned of the firewall. Well, the problem persisted.

Now it’s time to ignited the second booster of the rocked and I dived deeper into troubleshooting.

If you want to find the setup logs for the SCOM setup wizard you need to go to the following directory…

%LocalAppData%\SCOM\Logs

this is the place where the good information lives…

OpsMgrSetupWizard.txt => This is the actual setup log file of the wizard
SCOMPrereqCheck.txt => Prerequisite checker log
OMConsole.txt => OM console install log
OMServer.txt => OM server install log
Setup[0-X].txt => Every time you start the setup a new setup log is generated


I was interested in the OpsMgrSetupWizard.txt log and there I found the following error…


at the end of the log some more error hints…


These error forced me to re-check the permissions and services on the SQL server instance etc. I couldn’t find any misconfiguration at all, therefore after some time I decided to concentrate on the network layer. In order to see what the wizards might see if he queries the SQL server I used portqry.exe to check the ports and instances. I downloaded the tool from here  and ran the command to query the SQL server for the instances and to make sure the server and ports are reachable…

portqry.exe –n [SQL server name] -p UDP -e 1434


This output means everything is ok with the network and SQL layer because you can resolve the names and get the instances back. Next, I focused on the Operations Manager settings. Therefore, I opened the registry on one of the failing management servers and went to the registry key…

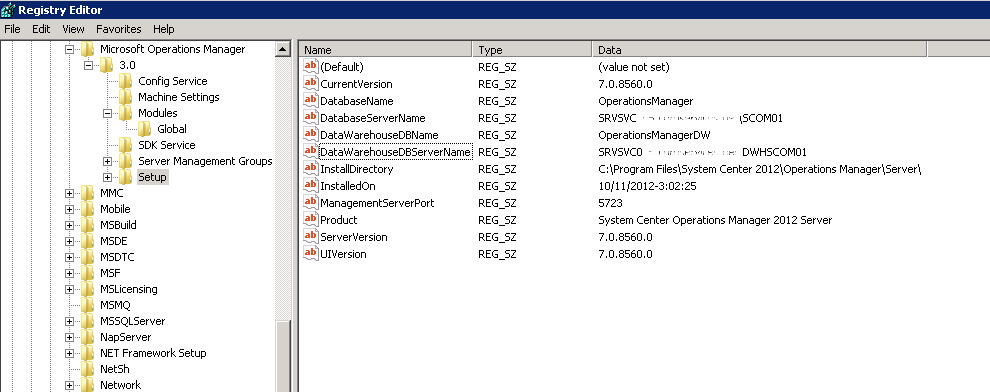

HKLM\SOFTWARE\Microsoft\Microsoft Operations Manager\3.0\Setup


By just looking at it I didn’t notice anything special, until I looked closer at the DataWarehouseDBServerName key. The key was  [Server]\DWHSCOM01 and it supposed to be [Server]\SCOMDWH01 .

After changing to the correct SQL server instance name in the registry the setup wizard ran correctly.

6

I hope I could give you some tips on troubleshooting and fixing this problem…

About Stefan Roth

Consultant
This entry was posted in Configuration, Troubleshooting, Upgrade. Bookmark the permalink.

8 Responses to SCOM 2012 SP1 – “Unable to Proceed” Troubleshooting Upgrade Error

  1. oportingale says:

    Thanks for a very useful post. I had a similar problem that ultimately turned out to be the user I was trying to install the upgrade from.
    Eventually I logged on as the person who installed the program originally (luckily we still had an account for him) and it worked!
    I had a similar problem adding the license key to update it from an eval version! I must admit this kind of thing is very frustrating from MS!.

    Thanks again.

  2. Sunil says:

    Thanks a lot for your blog.. I had faced the same problem as you did, and had to spend lot of time getting to your blog.. but patience was definelty fruitful..
    Thanks once again…

  3. Jeff says:

    Ran into the same issue. Thank you!!!

  4. Rodrigo Fronza says:

    Hello, Stefan
    I am a customer and I’m having the same problem follow in his footsteps and log OpsMgrSetupWizard found this:
    16:05:16]: Info :: Info: Using DB command timeout = 1800 seconds.
    [16:05:16]: Error :: GetManagementGroupInfoFromDB: Error: {0}: Threw Exception.Type: System.Data.SqlClient.SqlException, Exception Error Code: 0×80131904, Exception.Message: The EXECUTE permission was denied on the object ‘p_MOMManagementGroupInfoSelect’, database ‘OperationsManager’, schema ‘dbo’.
    [16:05:16]: Error :: StackTrace: at System.Data.SqlClient.SqlConnection.OnError (SqlException exception, Boolean breakConnection)
    For the characteristic of error is a permission problem in the database.
    I have a User who is a local administrator of the server.
    The suggestion is this User to have local administrator pemissões as sysadmin in Sql Server 2008 R2? Sql server is installed on the same server as SCOM 2012.
    Thank you for your attention.

  5. Martin says:

    Hello,
    I also have problem to uprgrade from SCOM 2012 to SCOM 2012 SP 1. I can read in OpsMgrSetupWizard:
    [17:57:36]: Info: :Info:Using DB command timeout = 1800 seconds.
    [17:57:36]: Error: :GetManagementGroupInfoFromDB: Error: {0}: Threw Exception.Type: System.Data.SqlClient.SqlException, Exception Error Code: 0×80131904, Exception.Message: The EXECUTE permission was denied on the object ‘p_MOMManagementGroupInfoSelect’, database ‘OperationsManager’, schema ‘dbo’.
    [17:57:36]: Error: :StackTrace: at System.Data.SqlClient.SqlConnection.OnError(SqlException exception, Boolean breakConnection)
    at System.Data.SqlClient.TdsParser.ThrowExceptionAndWarning()
    at System.Data.SqlClient.TdsParser.Run(RunBehavior runBehavior, SqlCommand cmdHandler, SqlDataReader dataStream, BulkCopySimpleResultSet bulkCopyHandler, TdsParserStateObject stateObj)
    at System.Data.SqlClient.SqlDataReader.ConsumeMetaData()
    at System.Data.SqlClient.SqlDataReader.get_MetaData()
    at System.Data.SqlClient.SqlCommand.FinishExecuteReader(SqlDataReader ds, RunBehavior runBehavior, String resetOptionsString)
    at System.Data.SqlClient.SqlCommand.RunExecuteReaderTds(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, Boolean async)
    at System.Data.SqlClient.SqlCommand.RunExecuteReader(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, String method, DbAsyncResult result)
    at System.Data.SqlClient.SqlCommand.RunExecuteReader(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, String method)
    at System.Data.SqlClient.SqlCommand.ExecuteReader(CommandBehavior behavior, String method)
    at System.Data.SqlClient.SqlCommand.ExecuteReader()
    at Microsoft.EnterpriseManagement.OperationsManager.Setup.Common.OperationsManagerHelpers.GetManagementGroupInfoFromDB(String sqlServer, Nullable`1 sqlPort, String omDatabaseName, String& strMGName)
    [17:57:36]: Error: :Error:Management Group Name is missing.
    [17:57:36]: Info: :Info:Using DB command timeout = 1800 seconds.
    [17:57:36]: Error: :failed to get DB version from OM DB: Threw Exception.Type: System.Data.SqlClient.SqlException, Exception Error Code: 0×80131904, Exception.Message: The SELECT permission was denied on the object ‘__MOMManagementGroupInfo__’, database ‘OperationsManager’, schema ‘dbo’.
    [17:57:36]: Error: :StackTrace: at System.Data.SqlClient.SqlConnection.OnError(SqlException exception, Boolean breakConnection)
    at System.Data.SqlClient.TdsParser.ThrowExceptionAndWarning()
    at System.Data.SqlClient.TdsParser.Run(RunBehavior runBehavior, SqlCommand cmdHandler, SqlDataReader dataStream, BulkCopySimpleResultSet bulkCopyHandler, TdsParserStateObject stateObj)
    at System.Data.SqlClient.SqlDataReader.ConsumeMetaData()
    at System.Data.SqlClient.SqlDataReader.get_MetaData()
    at System.Data.SqlClient.SqlCommand.FinishExecuteReader(SqlDataReader ds, RunBehavior runBehavior, String resetOptionsString)
    at System.Data.SqlClient.SqlCommand.RunExecuteReaderTds(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, Boolean async)
    at System.Data.SqlClient.SqlCommand.RunExecuteReader(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, String method, DbAsyncResult result)
    at System.Data.SqlClient.SqlCommand.RunExecuteReader(CommandBehavior cmdBehavior, RunBehavior runBehavior, Boolean returnStream, String method)
    at System.Data.SqlClient.SqlCommand.ExecuteReader(CommandBehavior behavior, String method)
    at System.Data.SqlClient.SqlCommand.ExecuteReader()
    at Microsoft.EnterpriseManagement.OperationsManager.Setup.Common.SetupValidationHelpers.GetDBVersionFromOMDB(SqlConnection connection, String& dbVersion)
    [17:57:36]: Error: :Error:Failed to detect RC server upgrade scenario
    [17:57:36]: Always: :End: Rationalize Operations Manager Server upgrade.
    [17:57:36]: Error: :RationalizeComponents blocked because: Failed to detect server scenario for upgrade case.
    [17:57:36]: Always: :End: Rationalize server component.
    [17:57:36]: Error: :Error:Could not rationalize OMSERVER and thus setup is blocked.
    [17:57:36]: Debug: :OMForwardToStartPageTrackPageHandler: Moving to page UpgradeInvalidStartPage
    [17:57:36]: Always: :Entering Page: UpgradeInvalidRootPage
    [17:59:35]: Always: :Begin: Property bag dump.
    [17:59:35]: Always: :SetupStartTime = 1/8/2014 5:57:34 PM
    [17:59:35]: Always: :Collection ProtectedProperties (System.Collections.ArrayList):
    [17:59:35]: Always: : [0] = ActionAccountPassword
    [17:59:35]: Always: : [1] = DASAccountPassword
    [17:59:35]: Always: :DefaultLogName = C:\Users\XXX\AppData\Local\SCOM\Logs\OpsMgrSetupWizard.log
    [17:59:35]: Always: :DefaultLogPath = C:\Users\XXX\AppData\Local\SCOM\Logs
    [17:59:35]: Always: :path = C:\Sys_Ctr_Ops_Manager_Svr_2012_wSP1_English_X18-56723\Setup\AMD64\
    [17:59:35]: Always: :setupexepath = C:\Users\wroothr\AppData\Local\SCOM
    [17:59:35]: Always: :ArchitectureIs64Check = True
    [17:59:35]: Always: :Collection ListOfSupportedComponents (System.Collections.ArrayList):
    [17:59:35]: Always: : [0] = OMCONSOLE
    [17:59:35]: Always: : [1] = OMSERVER
    [17:59:35]: Always: : [2] = OMWEBCONSOLE
    [17:59:35]: Always: : [3] = OMREPORTING
    [17:59:35]: Always: :OMServerInstalled = True
    [17:59:35]: Always: :RTMUpgrade = 1
    [17:59:35]: Always: :installpath = C:\Program Files\System Center 2012\Operations Manager
    [17:59:35]: Always: :Collection ListOfSelectedComponents (System.Collections.ArrayList):
    [17:59:35]: Always: : [0] = OMCONSOLE
    [17:59:35]: Always: : [1] = OMSERVER
    [17:59:35]: Always: : [2] = OMWEBCONSOLE
    [17:59:35]: Always: :EulaFilesPath = C:\Users\XXX\AppData\Local\SCOM
    [17:59:35]: Always: :SendCEIPReports = 0
    [17:59:35]: Always: :SqlServerInstance = svr-scom1
    [17:59:35]: Always: :DatabaseName = OperationsManager
    [17:59:35]: Always: :ManagementServer = localhost
    [17:59:35]: Always: :WebsiteName = Default Web Site
    [17:59:35]: Always: :WebConsoleAuthorizationMode = Mixed
    [17:59:35]: Always: :ScreensLoaded = 1
    [17:59:35]: Always: :BlockReason = Failed to detect server scenario for upgrade case.
    [17:59:35]: Always: :InstallSuccess = 1
    [17:59:35]: Always: :End: Property bag dump.
    [17:59:35]: Always: :Application Ended: Successful
    [17:59:35]: Always: :
    [2014-01-08T17:59:35.1158874+01:00]: Always: Trace Session Ended

    • Stefan Roth says:

      Hi

      Make sure the account you are executing the upgrade from has full permission on the SQL Server backend. It seems that your setup can not Access management group name in the database and therefore crashes. Run the setup in elevated (Run as Administrator) permission.

      [17:57:36]: Error: :failed to get DB version from OM DB: Threw Exception.Type: System.Data.SqlClient.SqlException, Exception Error Code: 0×80131904, Exception.Message: The SELECT permission was denied on the object ‘__MOMManagementGroupInfo__’, database ‘OperationsManager’, schema ‘dbo’.

      Cheers,

      Stefan
